Climate Challenges for Bitcoin Mining Farms
Desert Climate (Middle East):
Desert mining sites endure ambient temperatures that can exceed 40–50 °C in summer. Such heat severely tests conventional cooling – many ASIC miners are rated for safe operation only up to around 45 °C ambient. Above that, equipment may overheat, throttle, or fail. Moreover, deserts often have dust or sand storms. Fine particles can clog fans and heatsinks, so any air-based cooling must include filtration to prevent dust ingress. Low humidity in deserts means evaporative cooling (using water to pre-cool air) can be effective, but water is a scarce resource and adds operational cost. In short, passive or standard cooling is often insufficient in Middle Eastern heat – as one industry project noted, the desert climate can render air-cooled mining “infeasible” without special measures.
Arctic Climate (Russia/Norway):
Cold regions provide the opposite scenario: very low ambient temperatures (Siberian facilities see winters of –30 °C or even –60 °C. This frigid air is a natural ally for cooling – miners can run full-throttle while the environment wicks away heat. Operators in Arctic locales report that “there is no need to pay extra for cooling – it is simply created by nature” . The cool air extends hardware lifespan and stability. However, extreme cold and weather (snow, ice, high winds) mean facilities must be built to withstand harsh conditions (e.g. using frost-resistant materials). Another consideration is humidity and condensation: bringing very cold air into a warm mining hall can cause moisture issues if not managed. Overall, arctic miners benefit from free ambient cooling, but they must handle practical challenges of operating in remote, icy conditions.
The stark contrast in climates means a solution that works in Norway’s winter might struggle in a Saudi summer. Below, we examine different cooling methods and how they fare under these conditions.
Desert vs. Arctic Climate Mining Conditions Comparison
| Factor | Desert Climate (Middle East) | Arctic Climate (Russia/Norway) |
|---|---|---|
| Ambient Temperature | 40–50 °C+ in summer | –30 °C to –60 °C in winter |
| Cooling Challenge | Overheating; air cooling often insufficient | Cooling is natural; no need for extra equipment |
| Dust and Particles | High – dust storms can clog fans and heatsinks | Low – clean, cold air |
| Humidity | Very low – suitable for evaporative cooling, but water is scarce | Potential condensation from cold air entering warm halls |
| Cooling Solutions | Requires filtration, sealed systems, or immersion cooling | Simple ventilation often sufficient |
| Hardware Stress | High – overheating, frequent maintenance | Low – stable, extended hardware life |
| Construction Needs | Standard materials; filtered airflow crucial | Frost-resistant buildings; wind/snow protection needed |
| Operational Cost | Higher – extra systems & water cost | Lower – free ambient cooling |
| Conclusion | Air cooling often infeasible without modifications | Environment favors mining if setup is frost-ready |
Cooling Methods for Crypto Mining Farms
Natural Ventilation (Passive Cooling)
Natural ventilation is the simplest cooling approach: leveraging airflow from the environment with minimal mechanical intervention. Essentially, you use outside air to cool miners by designing the facility for cross-breezes or basic fan-assisted exhaust. This is common in cooler climates where just opening louvered vents and using exhaust fans can maintain safe temperatures. In Arctic areas, cold air ventilation can be incredibly effective and low-cost. For example, at BitCluster’s Norilsk data center in Siberia, the ambient air (often well below freezing) is enough to keep miners cool year-round without additional cooling systems . The cold outside air directly absorbs heat from the machines and is vented out, eliminating the need for chillers or AC. This free cooling saves on energy costs and even helps equipment last longer by keeping temperatures low.
However, in hot desert climates, natural ventilation alone is usually insufficient. When outside air is 40 °C or more, simply blowing it through the miners won’t cool them; in fact it can overheat the hardware. In such conditions, relying on passive airflow would quickly exceed the safe operating range of the ASICs (typically up to ~45 °C ambient). Additionally, desert air carries dust and sand that can damage hardware if unfiltered. Intake vents would require fine mesh or filters to catch particles, and those filters themselves need frequent cleaning. Natural ventilation might be usable during cooler nights or seasons, but daytime often demands more aggressive cooling. In short, natural ventilation works best in cold climates (where nature’s cooling is abundant) and is far less viable in extreme heat without supplemental systems.
Natural Ventilation for Bitcoin Mining: Arctic vs. Desert Climates
| Aspect | Arctic Climate (e.g. Siberia) | Desert Climate (e.g. Middle East) |
|---|---|---|
| Effectiveness | Highly effective – cold air cools miners naturally | Ineffective – hot air cannot reduce miner temps |
| Temperature Range | Often well below freezing; ideal for passive cooling | 40 °C+ ambient air often exceeds ASIC safety limits |
| Energy Savings | Significant – no AC or chillers needed | Minimal – may require AC or liquid cooling |
| Hardware Longevity | Improved – stable low temps help extend lifespan | At risk – high temps and dust cause wear and tear |
| Dust/Particles | Low – clean air | High – sand/dust requires filtration |
| Maintenance Needs | Low – simple airflow system | High – filters need constant cleaning |
| Cost Implications | Low – minimal investment in extra cooling | High – supplemental cooling systems often required |
| Best Use Timing | Year-round | Limited – only cooler nights or off-peak seasons |
| Conclusion | Ideal natural cooling solution | Often insufficient without additional support |

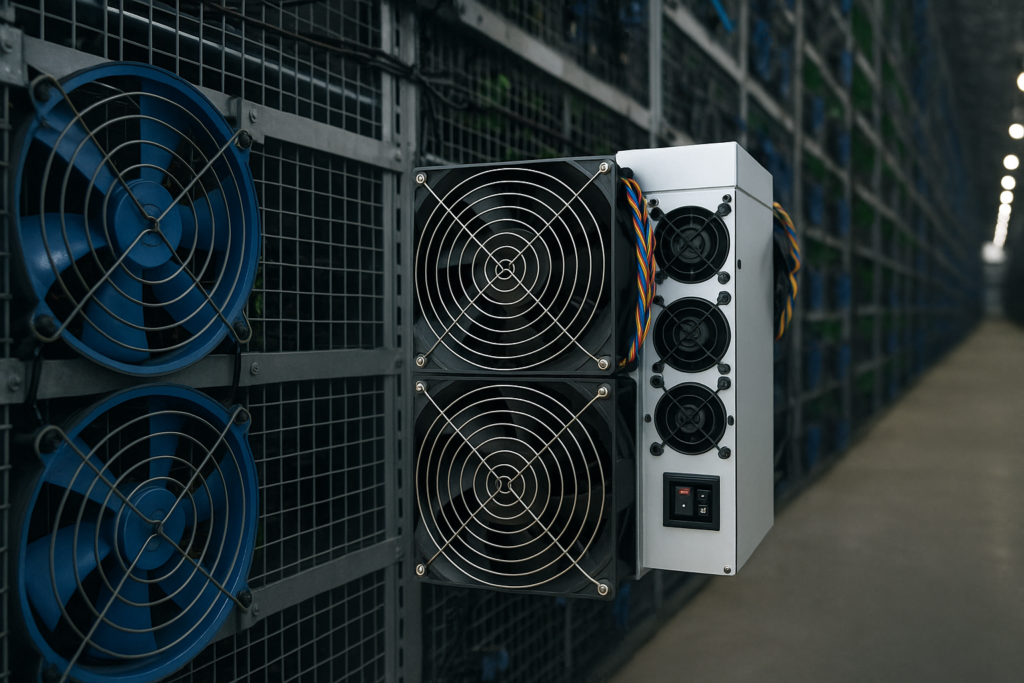

Bitcoin Mining Air Cooling (Forced Air & HVAC)
Air cooling is the most common method in mining farms worldwide. It uses high-speed fans and airflow management to remove heat. Each miner (ASIC unit) typically has its own fans that force air over the hashing chips and out the exhaust. Facilities augment this with aisle containment, roof vents, and sometimes industrial blowers to push hot air out and bring fresh air in. Air cooling is straightforward and cost-effective to set up compared to liquid cooling systems. Maintenance is relatively simple – mainly keeping fans running and dust filters clean. All standard miners (e.g. Bitmain’s Antminer series or MicroBT’s WhatsMiners) are designed as air-cooled devices by default. For example, Bitmain’s newly launched Antminer T21 is an air-cooled BTC ASIC miner with 190 TH/s performance, indicating that air cooling remains the default for latest-generation hardware. These air-cooled miners can be deployed easily in most facilities.
In moderate to cold climates, conventional air cooling works very well. Operators can harness the cold ambient air to cool the intake. Many large farms in Canada, Scandinavia, and Russia use massive fans to draw in frigid outside air and vent hot air out. As a bonus, the warm exhaust can be repurposed for heating nearby facilities. In Norway, for instance, the Kryptovault mining farm in Hønefoss channels the hot air from its miners to dry firewood for a local lumber company – effectively recycling the heat that the air cooling system removed. The CEO of that operation notes that Norway’s climate and abundant renewable energy make it an “ideal location for mining”, since simple air cooling is sufficient and the waste heat even becomes a resource.
In hot desert environments, standard air cooling faces challenges. First, the cooling efficiency is limited by high inlet air temperature – fans might blow as hard as they can, but if the air is 40+°C, miners risk overheating. As a result, air cooling in warm climates may require augmentation: some farms use evaporative cooling pads or misting systems at the air intakes to pre-cool the air via water evaporation. This can drop the air temperature several degrees (taking advantage of dry desert air), but it consumes water and needs maintenance. Other sites might install traditional HVAC (compressor-based air conditioning), but doing that at scale (for a warehouse of ASICs) is often cost-prohibitive in terms of electricity. Even with these measures, air cooling is pushed to its limits in Middle East deserts – as evidenced by Marathon’s Abu Dhabi project which found that air-cooled mining was not feasible at all in that climate. Another downside in dusty deserts is that fans create negative pressure that pulls in dust if not properly sealed, leading to more cleaning and risk of hardware failure. In summary, air cooling is simple and low-cost (especially in cooler regions), but in extreme heat its efficiency is limited and it may need additional cooling aids or give way to liquid cooling solutions.
Air Cooling for Bitcoin Mining: Cold vs. Hot Climates
| Aspect | Moderate/Cold Climates (Canada, Norway, Russia) | Hot Desert Climates (Middle East, etc.) |
|---|---|---|
| Cooling Efficiency | Very effective – cold air helps cooling naturally | Poor – high ambient temperatures limit cooling |
| Setup | Standard fans and exhaust vents are sufficient | Requires additional systems (evaporative/misting/HVAC) |
| Energy Cost | Low – simple airflow, no need for AC | High – extra power needed if using pre-cooling/AC |
| Use of Waste Heat | Can be recycled (e.g., heating buildings, drying firewood) | Difficult – hot exhaust not easily reused |
| Dust Management | Minimal concern | Serious concern – dust ingress without proper filtration |
| Water Usage | None | Needed if using evaporative cooling pads |
| Maintenance Needs | Low – mainly fan and filter upkeep | High – constant cleaning and water system maintenance |
| Climate Suitability | Ideal | Limited – air cooling often insufficient alone |
| Example | Kryptovault (Norway): heat used for firewood drying | Marathon (Abu Dhabi): found air cooling not feasible |
| Conclusion | Cost-effective and reliable | Challenging; may need liquid cooling alternatives |
Bitcoin Mining Water Cooling (Hydro Cooling)
Water cooling – also called hydro cooling – uses liquid (usually water or a water-glycol mix) to absorb heat from the miners, instead of air. Specialized miners have water blocks (similar to car radiators or PC water-cooling blocks) attached to the chips. Water is pumped through these blocks, picking up heat directly from the source, and then circulated out to a heat exchanger where the heat is dumped (to air or another water loop). The cooled water then recirculates to the miners in a closed loop. This method can remove heat more efficiently than air, because water has much higher thermal capacity. It maintains more stable chip temperatures (preventing hot spots) and can allow denser packing of machines since airflow path is not a concern. For example, Bitmain’s Antminer S19 Hydro is a water-cooled model that achieves 158 TH/s with about 5451 W power draw – it integrates a water circuit to keep those high-power chips cool. Even newer, Bitmain’s S19 XP Hyd variant pushes up to ~257 TH/s at 5345 W (around 20.8 J/TH efficiency), illustrating how water-cooled designs can improve performance and efficiency beyond what air-cooled miners typically manage.
In practice, water cooling systems for mining farms require a secondary infrastructure: pumps, pipes, and cooling towers or dry coolers. The heat exchanger component is crucial – after water absorbs heat from miners, you need to reject that heat somewhere.
Two common approaches are:
(1) Dry coolers, which are like big radiators with fans that transfer heat from the water loop to the outside air (without consuming water)
(2) Cooling towers, which evaporate some water to carry away heat (more efficient, but uses water). In desert climates, using water cooling raises the question of water supply and consumption. A closed-loop system with dry coolers can avoid water loss, but the dry cooler’s performance is limited by air temperature.
In 45 °C ambient air, a dry cooler can only cool water to maybe 50+°C, so the water coming back to miners might be quite warm – still better than 80°C chips, but it reduces cooling effectiveness. Some desert operations might opt for hybrid systems (for instance, a dry cooler at night and an evaporative cooler during peak heat) to keep water temperatures in check. Water quality is another issue: desert groundwater can be mineral-rich, so anti-scaling treatment or filtering is needed to prevent deposits in cold plates. Despite these challenges, water cooling can make desert mining feasible by actively pulling heat from ASICs more efficiently than air. It’s a significant upgrade in cooling capability, but comes with higher CapEx and the need for engineering expertise to manage the system.
In arctic conditions, water cooling can be extremely effective and relatively easier to implement. Cold external air means even a dry cooler can easily chill the water loop well below typical chip temps. Alternatively, an arctic site near a cold river or sea water source could use a heat exchanger to dump heat into that water body (though environmental regulations would apply). One must prevent the water in the loops from freezing – usually by mixing glycol anti-freeze or by keeping pumps running so water doesn’t stagnate and freeze. The benefit is that cooling efficiency is very high in cold climates – water coming out of miners hot can be cooled to near 0 °C in winter with minimal fan effort, so miners can run at full throttle and potentially even be overclocked. Hydro-cooled farms in cold regions might actually need to throttle back cooling in winter to keep chips from overcooling or to avoid condensation. Maintenance in cold climates might involve heating the facility enough so that piping and pumps (when off) don’t freeze. Overall, water cooling in arctic areas offers **excellent temperature control, and scalability for large farms, as long as the infrastructure is protected against freezing. The main barrier to water cooling adoption has been that relatively few mining models supported it until recently, but new hydro ASICs (from Bitmain and MicroBT) and third-party kits are expanding these options.
Water Cooling for Bitcoin Mining: Arctic vs. Desert Climates
| Aspect | Arctic Climate (e.g. Russia, Canada) | Desert Climate (e.g. UAE, Saudi Arabia) |
|---|---|---|
| Cooling Efficiency | Extremely high – cold air or water enhances performance | Effective but limited by ambient air temp |
| Heat Rejection Method | Dry coolers or discharge to rivers/lakes | Dry coolers (limited) or evaporative towers (use water) |
| Water Temperature Range | Can be cooled to near 0 °C with minimal effort | Water may stay at 50 °C+ in 45 °C air with dry coolers |
| Risk of Freezing | High – must use glycol mix or keep flow moving | None |
| Water Availability | Plentiful – often near rivers or lakes | Scarce – water consumption must be minimized |
| Infrastructure Needs | Pump system, insulated piping, freeze protection | Pump system, filtration, anti-scaling treatment |
| Environmental Consideration | Must manage heat discharge into natural bodies | Water use and discharge must comply with regulations |
| CapEx & Expertise | High – needs engineering and cold-weather prep | High – also needs water management systems |
| Hardware Compatibility | Increasing – S19 Hydro, S19 XP Hyd, etc. now available | Same hardware usable, but filtration and hybrid cooling needed |
| Conclusion | Excellent option if freeze risk is managed | Technically feasible, but resource-intensive |
Immersion Cooling (Dielectric Liquid Immersion)
Immersion cooling is a cutting-edge solution where mining hardware is submerged in a bath of specialized coolant liquid instead of air. The fluid used is a non-conductive (dielectric) liquid – often a type of mineral oil or engineered coolant – that directly contacts the ASIC chips and boards, wicking away heat much more efficiently than air. In a typical setup, miners (with fans removed) are dunked in tanks filled with the fluid. Heat from the electronics causes the fluid to warm up, and then the hot fluid is pumped out to a heat exchanger (for single-phase immersion). After cooling down, the liquid returns to the tank in a closed loop. In two-phase immersion, a different principle is used: the fluid boils into vapor at a certain temperature, carrying heat upward, then condenses on a cooled coil back to liquid. Two-phase systems can dump heat very efficiently via phase change, but they require special (often expensive) refrigerant fluids and careful design. Most mining farms deploying immersion use single-phase systems with high-performance oils because of simplicity.
The advantages of immersion cooling are significant: it can dissipate heat far more effectively than air cooling, enabling miners to operate at higher power (and thus higher hashrate) without overheating. Some miners in immersion are overclocked 20–40% beyond stock settings, increasing output. Immersion also provides uniform cooling – every part of the miner is surrounded by the liquid – eliminating hot spots and reducing thermal stress on components. Another benefit is noise reduction: no loud fans, just pumps and maybe the hum of coolant flow, making it much quieter than air-cooled farms. Additionally, since the hardware is sealed in liquid, dust and moisture can’t reach it, which greatly lowers failure rates due to environmental factors. Cleanliness and corrosion are much less concern when boards are submerged in a controlled fluid.
The downsides are mainly upfront cost and complexity. Immersion cooling requires specialized tanks or enclosures, large volumes of dielectric fluid, pumps, and heat exchangers – a hefty initial investment. The coolant fluids can be expensive, and there is a learning curve to maintaining them (preventing degradation of the oil, filtering any particulates, etc.). Not all mining machines are immersion-ready out of the box; operators often have to remove fans, and sometimes certain materials (plastics, stickers) that might not behave well in liquid. Despite these challenges, immersion is being rapidly adopted in industrial mining operations for its performance and long-term ROI benefits.
Immersion Cooling for Bitcoin Mining: Overview
| Aspect | Description |
|---|---|
| Cooling Method | Miners are submerged in dielectric fluid (mineral oil or engineered coolant) |
| System Types | – Single-phase: liquid circulates via pump and heat exchanger |
| – Two-phase: fluid vaporizes and condenses to remove heat (more complex) | |
| Heat Dissipation | Extremely efficient – better than air or water |
| Overclocking Capability | Allows 20–40% performance boost without overheating |
| Temperature Uniformity | Excellent – fluid surrounds all components, eliminating hot spots |
| Noise Level | Very low – no fans; only pumps or fluid hum |
| Dust & Moisture Protection | Fully sealed – immune to dust, humidity, and airborne contaminants |
| Hardware Lifespan | Extended – reduced thermal stress and corrosion risk |
| Maintenance Needs | Regular fluid monitoring and filtration; fan removal/setup prep |
| Setup Complexity | High – needs tanks, pumps, coolant, plumbing, and immersion-ready hardware |
| Initial Cost | High – due to fluid and infrastructure investments |
| Adoption Trend | Growing in industrial-scale mining for efficiency and long-term ROI |
| Best Use Case | High-density mining farms aiming for maximum performance and quiet operation |
Desert climates are where immersion cooling truly shines. When air cooling fails due to 45 °C ambient air, immersion can keep miners cool by isolating them in a controlled bath. The liquid can be run at higher temperatures than one would allow for air – for instance, even if the cooling oil rises to 60 °C, the ASIC chips might still be at safe operating temps, whereas 60 °C air would fry an air-cooled setup. This gives more headroom to operate on hot days. The Marathon/Zero Two mining facilities in Abu Dhabi provide a real example: they chose full immersion cooling for 250 MW of mining hardware because the desert climate made air cooling impractical. Through immersion, their miners could run reliably even in the UAE heat, validated by a pilot program that proved immersion kept temperatures in check where traditional cooling could not. Immersion also protects against Abu Dhabi’s dust and sand – the equipment is sealed in tanks, not exposed to the gusty desert air. The one challenge that remains is removing heat from the liquid: even immersion systems need to reject heat via radiators or cooling towers. In a desert, those radiators will be less efficient (due to hot ambient air), so designers often oversize the heat exchangers or use evaporative cooling on the secondary side. Still, it’s easier to cool a large volume of oil with a centralized system than to ensure thousands of individual air-cooled machines don’t overheat. Thus, immersion is a go-to solution for Middle Eastern mining farms despite the higher initial cost – it’s essentially the price of doing business in a hot climate, and it pays off by enabling operations that would otherwise be impossible.
In arctic climates, immersion cooling is less of a necessity but can still be beneficial. Since cold air is plentiful, many operations stick with air cooling for cost reasons. But some farms opt for immersion to achieve maximum hashrate or to reuse heat in a more concentrated form. For instance, an immersion-cooled farm could capture the hot fluid and circulate it to heat nearby buildings or greenhouses (more efficiently than trying to duct hot air around). Immersion also ensures that if there are any sudden cold drafts, the electronics are not directly exposed (avoiding thermal shock or condensation). Generally, though, the natural advantage of cold air makes immersion an optional luxury in places like Siberia or Norway. One might use it to push miners to the limit (overclock in cold conditions even further), or to eliminate noise (which could be a factor if the facility is near populated areas, since fan noise travels far in cold dense air). Given immersion’s cost, a cold-climate farm would weigh if the extra hash power and hardware longevity justify it, versus the essentially free cooling they get from air. Some Scandinavian projects have considered immersion mainly for heat reuse – capturing 60–70°C fluid to provide district heating or industrial process heat. In summary, while immersion is not required in cold climates, it can still be part of an optimized operation, especially to maximize performance or integrate with heating needs.
Immersion Cooling for Bitcoin Mining: Desert vs. Arctic Climates
| Aspect | Desert Climate (e.g. Abu Dhabi, UAE) | Arctic Climate (e.g. Siberia, Norway) |
|---|---|---|
| Necessity | Essential – air cooling fails at 45 °C+ | Optional – cold air sufficient for air cooling |
| Main Benefits | – Handles extreme heat – Shields miners from dust/sand | – Protects against thermal shock – Concentrates waste heat for reuse |
| Challenges | – Heat rejection less efficient – Requires large radiators or evaporative systems | – High upfront cost – Deciding if immersion justifies free air cooling |
| Cooling Liquid Temp Range | Operates safely even with 60 °C oil temperature | Can maintain 60–70 °C fluid for building/industrial heating |
| Infrastructure Needs | Oversized heat exchangers or secondary evaporative cooling | Standard immersion setup; optional heat reuse piping |
| Overclocking Potential | High – stable thermal environment even during desert peaks | Very high – cold environment + immersion boosts performance |
| Noise Reduction | Significant – eliminates massive fan noise | Useful near populated areas (fan noise travels in cold air) |
| Dust/Moisture Protection | Excellent – hardware sealed in tanks | Good – prevents condensation directly on electronics |
| Example | Marathon/Zero Two 250 MW project in Abu Dhabi | Scandinavian projects exploring immersion + district heating |
| Conclusion | Crucial for operation in hot climates | Valuable for optimization, not survival |
Bitcoin Mining Oil Cooling (Mineral Oil Immersion)
Oil cooling refers specifically to the common practice of single-phase immersion in mineral oil or similar fluids. (In many contexts, “immersion cooling” and “oil cooling” are used interchangeably since mineral oil is a popular immersion fluid.) We distinguish it here to emphasize the use of oil-based dielectric fluids. In oil immersion, miners are dunked in large tanks filled with a non-conductive oil that carries heat away from components. The concept has been borrowed from electrical transformer cooling and adapted to IT and crypto mining. One well-known example is the **WhatsMiner M66S+**, an oil-immersed ASIC miner that boasts a hash rate around 280–318 TH/s with an efficiency near 17 J/TH ([Top Most Profitable Bitcoin Miners 2025]). Such performance is achieved by overclocking chips in oil – the fluid keeps them sufficiently cool despite the high power draw. This miner (offered via Miner Source’s catalog) exemplifies how manufacturers are starting to deliver oil-cooled machines ready to drop into immersion farms.
Implementing oil cooling at scale often involves modular tank systems or even full-container solutions. For example, companies like Fog Hashing provide prefabricated containers where racks of miners are submerged in oil and connected to pumping and heat exchange units. These oil-cooled containers are designed to reduce temperatures dramatically and extend equipment lifespan – a key selling point for large operations looking at long-term ROI. There are also DIY and aftermarket kits: one can buy a cooling kit with pumps and heat exchangers to convert air-cooled miners to liquid. A 12 kW oil cooling kit by Lian Li, for instance, integrates pump, reservoir, and radiator for a block of miners, supporting high-power heat dissipation with controlled temperature. Such accessories make it easier for miners to adopt oil immersion without designing everything from scratch.
In terms of climate: Oil immersion is particularly well-suited for extreme environments. In deserts, as discussed, it isolates the heat management from the brutal ambient conditions. In cold regions, one fringe benefit is that oil won’t evaporate or cause icing like water might – it remains stable in liquid form (though it can become viscous in extreme cold). Oil cooling also eliminates the concern of humidity entirely (since the miners aren’t exposed to air). The main trade-off is cost and complexity versus simpler cooling. For many big mining enterprises, the calculation comes down to scale and energy price: if power is cheap and you want to maximize hashrate per machine, immersion/oil cooling helps you overclock and get more bitcoins per miner. If power is expensive, immersion can improve efficiency slightly but maybe not enough to offset its own energy usage and capital cost, unless it allows you to use otherwise unusable locations (like the UAE example).
Overall, mineral oil immersion is an advanced cooling method that offers the most thermal headroom and hardware protection. It is increasingly used in hot climates out of necessity, and selectively used in cooler climates for performance gains. Its adoption is growing as more off-the-shelf oil-cooled miners and turnkey immersion systems appear on the market.
Oil Cooling (Mineral Oil Immersion) for Bitcoin Mining
| Aspect | Description |
|---|---|
| Cooling Method | Single-phase immersion using non-conductive mineral oil |
| Common Usage | Interchangeable with “immersion cooling”; emphasizes oil-based fluids |
| Example Miner | WhatsMiner M66S+ (280–318 TH/s, ~17 J/TH, oil-cooled, supports overclocking) |
| System Types | – Modular tanks – Prefab containers (e.g. Fog Hashing) – DIY conversion kits |
| Performance Advantage | Enables safe overclocking; reduces chip thermal stress |
| Climate Suitability | Ideal for both extreme heat and cold; unaffected by dust, ice, or humidity |
| Energy Efficiency | Slight improvement; major benefit is power density and stability |
| Noise Reduction | Significant – no fans, just pumps and radiators |
| Hardware Protection | High – sealed system prevents dust, oxidation, and moisture damage |
| Maintenance | Requires fluid management, pump upkeep, and oil filtration |
| Drawbacks | High initial cost and system complexity; heavier infrastructure |
| Deployment Trends | Growing in hot regions; expanding with prebuilt miners and turnkey systems |
| Best Use Case | Large farms seeking thermal headroom, overclocking potential, and long-term ROI |
Case Studies
To see how these cooling methods play out in the real world, let’s look at a few case studies in contrasting climates:
Case Study 1: Desert Mining Farm in Abu Dhabi, UAE (Immersion Cooling)
The Middle East’s first large-scale Bitcoin mining facilities are being established in Abu Dhabi – a 200 MW farm in Masdar City and a 50 MW farm in Mina Zayed – through a joint venture of Marathon Digital Holdings (USA) and Zero Two (UAE). From the outset, the planners recognized that Abu Dhabi’s desert climate would be too hot for conventional air cooling. Summer temperatures routinely top 45 °C with high dust levels, which would quickly cripple air-cooled ASICs. Indeed, Marathon stated that the “desert climate renders air-cooled mining infeasible” for these facilities. Their solution was to invest in full immersion cooling for all the miners.
In a pilot phase, Marathon and Zero Two custom-built immersion tanks and tested miners in the UAE heat. The pilot’s success demonstrated that a large immersion-cooled farm could operate reliably even in extreme temperatures. The immersion fluid and cooling system kept the ASICs at stable temperatures, whereas standard fan cooling would have failed. Following this, they proceeded with the massive 250 MW deployment using immersion as the core cooling strategy. The cooling infrastructure no doubt includes extensive pumps, heat exchangers, and likely cooling towers or dry coolers adapted to Abu Dhabi’s conditions. Such a system represents a significant capital investment – the joint venture’s capital expenditures in 2023 for the project were around $406 million (this includes more than just cooling, but it underscores the scale). While immersion cooling is expensive, it was the only viable path to make Bitcoin mining possible in that desert environment. By using immersion, the Abu Dhabi farms will have a combined hashrate of about 7 EH/s (exahashes per second) once operational, which would not have been attainable with air cooling (machines would thermal-throttle or need to be spaced out with power-hungry AC).
In terms of cost implications, running immersion at 250 MW scale will incur additional operational costs (pumping power, fluid maintenance) but these are offset by avoiding gigantic air conditioning systems or frequent hardware replacements. The case highlights that in Middle Eastern deserts, immersion cooling is practically a necessity for large mining operations – it turns an otherwise uninhabitable (for miners) climate into a viable one, at the cost of a higher initial investment. Marathon’s project also suggests a trend: new mining hubs may emerge in regions like the Gulf by leveraging advanced cooling to cope with the heat, tapping into energy sources that were previously underutilized due to climate.
Case Study: Marathon & Zero Two Immersion-Cooled Mining in Abu Dhabi
| Aspect | Details |
|---|---|
| Location | Abu Dhabi, UAE – Masdar City (200 MW) + Mina Zayed (50 MW) |
| Climate Challenge | >45 °C ambient temp, high dust levels – air cooling “infeasible” |
| Cooling Strategy | Full immersion cooling using custom-built tanks |
| Pilot Results | Immersion kept ASICs stable; validated feasibility in extreme heat |
| Total Capacity | 250 MW with projected 7 EH/s hashrate |
| System Components | Immersion tanks, heat exchangers, pumps, likely cooling towers/dry coolers |
| CapEx (2023) | ~$406 million (includes cooling, infrastructure, etc.) |
| Why Immersion? | Only viable solution – air cooling would lead to thermal throttling/failure |
| Ongoing Costs | Pump power, fluid maintenance |
| Cost Offsets | No AC systems, reduced hardware wear, higher density & uptime |
| Impact & Trend | Unlocks desert energy potential, sets precedent for Gulf mining expansion |
Case Study 2: Arctic Circle Mining in Norilsk, Russia (Natural Air Cooling)
In stark contrast, a mining farm in Norilsk, Russia, takes advantage of one of the coldest inhabited places on Earth. Norilsk lies above the Arctic Circle in Siberia, known for its brutal winters. BitCluster, a Russian mining company, established BitCluster Nord – the Arctic’s first crypto mining data center – in this location. Here, the ambient temperature often stays well below freezing (as low as –50 to –60 °C in winter) and even summer is cool. These conditions allow the facility to use natural and forced air cooling without any chillers or liquid cooling. Essentially, they built modular data center containers that draw in the outside air to cool the miners, then exhaust the hot air out. The environment provides free refrigeration: as BitCluster described, the long cold season means “cooling is simply created by nature” and no extra cost is needed to achieve low temperatures.
The benefits are clear in terms of cost and hardware longevity. With near-zero or sub-zero intake air, the miners consistently run at optimal temperatures, likely even below their normal operating range on average. This can extend the life of the devices because heat accelerates component aging – in Norilsk, overheating is almost never a concern. There is also zero electricity cost for cooling beyond running the fans, which is minimal. That means a larger share of the power is used for hashing, improving the power utilization efficiency of the farm. BitCluster did have to adapt the infrastructure to the climate: for instance, using materials that can handle -50 °C and designing enclosures to withstand blizzards and permafrost conditions. Workers likely need heated areas to service equipment, and some heat generated is probably used to keep the facility’s human-occupied sections warm.
From a cost perspective, the Norilsk operation saves money on cooling but might spend more on logistics and construction (since Norilsk is remote with no roads and requires flying equipment in, plus winter-proof building costs). Electricity in that area is relatively cheap and comes from local power plants, which was another reason they chose that site. Overall, this case study shows how a naturally cold climate can be a huge asset. By simply using air cooling in an intelligent way, the farm avoids needing any exotic cooling systems – what would be a challenge (extreme cold) for other industries is a benefit for Bitcoin mining. It’s essentially the inverse of the Middle East scenario: here the climate is an ally, providing free cooling and even enabling the possibility to repurpose heat if desired. As BitCluster noted, cool temperatures mean they don’t have to pay extra for cooling and their only limitation becomes electricity availability. This Arctic mine operates at ~11 MW for its first phase, with plans to expand, all on air cooling alone. The key takeaway is that in Arctic areas, simple cooling methods suffice and investing in more expensive cooling (water or immersion) would yield little advantage unless specific circumstances call for it.
Case Study: BitCluster Nord – Arctic Air-Cooled Mining in Norilsk, Russia
| Aspect | Details |
|---|---|
| Location | Norilsk, Russia (Above Arctic Circle) |
| Climate Advantage | –50 °C to –60 °C in winter; consistently below freezing |
| Cooling Method | Natural + forced air cooling – no chillers or liquid systems |
| Cooling Cost | Near zero – environment provides free cooling |
| System Design | Modular containers with airflow design |
| Hardware Longevity | Extended – chips run below normal temps; no overheating stress |
| Energy Efficiency | Very high – more power used for hashing, less for cooling |
| Infrastructure Challenges | – Must withstand blizzards, permafrost – Remote site with air logistics |
| Electricity Source | Local power plants – low cost energy |
| Heat Reuse | Heat used for indoor workspaces |
| CapEx Considerations | Higher upfront cost for logistics/building in Arctic |
| Capacity (Phase 1) | ~11 MW; planned expansion |
| Conclusion | Arctic climate eliminates need for advanced cooling systems – low cost, high efficiency |
Case Study 3: Sustainable Mining in Hønefoss, Norway (Air Cooling with Heat Reuse)
Norway presents a milder version of the Arctic advantage, with an added focus on sustainability. Kryptovault, one of Norway’s largest Bitcoin miners, runs a facility in Hønefoss that uses 100% renewable hydroelectric power. The climate in Norway is cold for a good part of the year (though not as extreme as Siberia), which means air cooling is sufficient for their needs. The cooling setup is primarily air-based: large fans drive cool outside air through the mining hall to cool the ASICs, and hot air is vented out. Rather than simply releasing that heat to the atmosphere, Kryptovault made an arrangement with a local timber business. The mining farm’s hot exhaust air is funneled to a drying facility where it is used to dry chopped logs, a process that normally would require burning fuel or using electric heaters. It takes a few days for each batch of logs to dry using the miners’ waste heat, after which the firewood is sold – all enabled by what would otherwise be a byproduct of mining.
This case is notable for turning a cooling challenge into an opportunity. In a sense, the miners act as heaters; the air cooling system not only preserves the hardware, but the “waste” heat becomes a useful output. The general manager of the timber company receiving the heat called it “the most environmentally friendly way” to dry wood. From Kryptovault’s perspective, this heat reuse has several benefits:
- It eliminates the need for other cooling disposal – even in winter, they can direct hot air to the dryers instead of simply blowing it outside (though if it’s too much, they can still vent some).
- It builds goodwill in the community (addressing criticisms of mining’s energy use by showing a secondary use).
- It might qualify for any local incentives for energy efficiency or heat recycling.
- It doesn’t add much cost; it’s basically ductwork and fans to redirect air, which they already have.
In terms of cost implications, Kryptovault’s cooling costs are minimal – essentially just the electricity for fans. They don’t need expensive liquid cooling gear. By using the heat, they arguably improve their overall energy efficiency (energy that does two jobs: mining and drying). There’s also a grid benefit: by consuming a lot of power and putting some of it into heating, they increase local energy consumption in a steady way, which actually reduced grid fees for the community due to how grid tariffs work in that area. This is a unique economic side-effect: the presence of the mining farm stabilized energy usage and lowered costs for others. The Norway example underscores that air cooling can be perfectly effective in cool climates, and innovative thinking can turn what is normally an engineering afterthought (disposing of heat) into a complementary business asset.
Case Study: Kryptovault Bitcoin Mining in Hønefoss, Norway
| Aspect | Details |
|---|---|
| Location | Hønefoss, Norway |
| Climate Type | Cold-temperate – cool most of the year |
| Cooling Method | Air cooling only – large fans + fresh ambient air |
| Energy Source | 100% renewable hydroelectric power |
| Heat Reuse Application | Waste heat redirected to dry timber for local firewood company |
| Environmental Impact | Reduced – “most eco-friendly way to dry wood” (per timber manager) |
| Infrastructure Needed | Simple ductwork to redirect exhaust air |
| Cooling Cost | Minimal – fan power only; no liquid systems |
| Energy Efficiency | Improved – mining + drying = dual-use of energy |
| Community Benefit | – Lower grid fees due to stable energy draw – Positive local image |
| Economic Advantage | No added cost, potential incentives for energy reuse |
| Scalability | Easy to replicate in other cool, industrial-agriculture areas |
| Conclusion | Air cooling in cool climates is efficient and sustainable when paired with heat reuse |
Comparing Cooling Solutions by Climate
Each cooling method has its place, and their suitability depends on the environment and scale. The table below summarizes how these solutions compare in a desert vs. an arctic scenario:
| Cooling Method | In Desert Climate(e.g. Middle East) | In Arctic Climate(e.g. Russia/Norway) |
|---|---|---|
| Natural Ventilation | –Very limitedcooling effect if ambient ~40°C+. – Might work during cooler nights, but generally insufficient at peak heat. – Dust ingress is a major issue; requires filters and frequent cleaning ([Stay Cool, Mine On: Exploring Bitcoin Mining Cooling Solutions | |
| Air Cooling (Fans) | –Standard but strained: Fans alone struggle with hot intake air, leading to possible overheating ([Stay Cool, Mine On: Exploring Bitcoin Mining Cooling Solutions | Often supplemented by evaporative cooling (water pads) or AC, adding to complexity and water use ([Stay Cool, Mine On: Exploring Bitcoin Mining Cooling Solutions |
| Water Cooling | –Promising but needs water: Efficiently draws heat from miners, but requires external radiators or cooling towers. – In deserts, water scarcity can be an issue; dry coolers at 45°C ambient have limited capacity, so systems must be overdesigned or use some water for evaporative cooling. – Infrastructure cost is high: pumps, pipes, heat exchangers, plus maintenance to prevent scaling in pipes ([Stay Cool, Mine On: Exploring Bitcoin Mining Cooling Solutions | Can keep miners cooler than air, improving reliability in heat. |
| Immersion Cooling | –Ideal for extreme heat: Completely sidesteps the hot ambient air issue by submerging miners in coolant. – Can maintain safe temperatures even when air-cooled setups would fail ([Large Immersion Cooled Crypto Mining Farms to Extract Bitcoin in Middle East Desert | Crypto Flings on Binance Square Heat is removed via centralized coolers which can be engineered to handle high outside temps (e.g. large cooling towers). – Protects hardware from dust and corrosion entirely – crucial in sandy desert locales |
| Oil Cooling(Mineral Oil Immersion) | –Proven solution for deserts: Many Middle Eastern operations are turning to oil immersion to cope with heat and dust. Oil’s thermal capacity keeps devices cool and clean. – Need to dissipate heat via external cooling, similar considerations as above (dry coolers or water towers sized for high ambient). – Oil systems must be monitored (oil can degrade over time with heat). But the extended hardware lifespan and ability to run in any temperature make it worthwhile. | –Useful for performance: Oil immersion can maximize hardware longevity and allow higher density even in cold climates. – Not strictly needed for cooling purposes, but if waste heat usage is planned, having it in oil makes integration with heat exchangers straightforward. – Some Nordic miners experiment with oil to achieve near-silent operation (important in areas with strict noise regulations) and to get every bit of hashrate out of their machines. |
Note: In any climate, the economics of cooling involve a trade-off between capital expenditure (CapEx) and operating costs (OpEx). Natural ventilation and basic air cooling are cheapest to set up but can incur hidden costs if they lead to downtime or hardware failures in harsh environments. Immersion and water cooling have high CapEx, but they can reduce OpEx by lowering failure rates and possibly improving electrical efficiency (for instance, fewer fans and the ability to run chips at optimal efficiency points). Large company buyers will consider the total cost of ownership: in a desert, high-tech cooling pays off by enabling mining at all; in a cold region, the cheapest solution often wins because nature already provides the cooling.
Conclusion
Cooling is a critical factor in designing and operating mining farms, and one size does not fit all. In Middle Eastern deserts, where ambient temperatures are extreme, advanced solutions like immersion or sophisticated water cooling are essential investments to ensure miners stay within safe temperatures. These methods come with higher upfront costs, but they make mining possible in climates that would otherwise be too hostile. In Arctic and Nordic regions, miners benefit from a natural cooling advantage – cold air that can be harnessed with simple ventilation and fan setups. For these farms, the focus is on smart airflow design and perhaps creative heat reuse, rather than heavy cooling infrastructure.
When planning a mining operation, climate should guide the choice of cooling:
- Hot/Dusty Climate: Lean toward liquid cooling (immersion in dielectric oil or water-cooled miners). The reliability gains and performance stability in heat justify the cost. For instance, products like Bitmain’s Antminer S19 Hydro or MicroBT’s WhatsMiner M53 (hydro-cooled units) are purpose-built for better cooling efficiency in tough conditions. Immersion-ready miners (like the WhatsMiner M66S+ oil-cooled model) can be deployed to maximize hashrate even in high temperatures. Supplementary cooling accessories – pumps, dry coolers, coolant distribution units – become part of the essential infrastructure in these locations, and suppliers like Miner Source provide those components to help build out robust cooling systems.
- Cold Climate: You can likely stick with air cooling – leveraging the environment saves cost and complexity. Standard air-cooled miners (like the Antminer S19 or the newer T21 series) running in container farms with good airflow may be sufficient. It’s still wise to have features like intake louvers and dust filters, but the expenses and power draw of liquid cooling can be spared. Instead, investment might go into heat management solutions (like heat exchangers to transfer waste heat for local use, or simply insulating parts of the facility to protect against condensation). If noise or maximum efficiency is a concern, one could consider hybrid approaches (e.g. a small immersion setup to overclock some units, or water-cooled radiators if space is very dense), but generally the natural chill is the prime asset.
Real-world examples reinforce these recommendations: Abu Dhabi’s immersion-cooled mega-farm showcases what it takes to mine in a desert (heavy engineering and capital, but it works), while Siberia’s “free cooling” mine shows the low-cost simplicity that’s possible in an icy climate. Norway’s sustainable mining project points to an ideal scenario where cooling not only protects the miners but also provides secondary benefits to the community.
Ultimately, mining farm operators must balance cost, climate, and scale. Natural ventilation and air cooling are practical and economical in cooler locales, whereas immersion and water cooling are enablers in extreme heat or for squeezing out maximum performance. With the continuous evolution of mining hardware and cooling technology – from air-cooled rigs to hydro and oil-cooled machines – companies have a growing toolkit to match their cooling solution to the environment. By planning accordingly, a mining operation can “stay cool and mine on,” achieving both efficiency and reliability no matter if it’s in the scorching sands or the frozen tundra.
Mining Farm Cooling Strategies by Climate
| Factor | Hot/Dusty Climate (e.g. Middle East) | Cold Climate (e.g. Russia, Norway) |
|---|---|---|
| Cooling Strategy | Liquid cooling (immersion or water) is essential | Air cooling is sufficient and cost-effective |
| Miner Models | – Antminer S19 Hydro – WhatsMiner M53 (hydro) – M66S+ (oil) | – Antminer S19 – Antminer T21 – Air-cooled container units |
| Infrastructure Needs | Pumps, heat exchangers, dry/evaporative coolers, sealed tanks | Fans, airflow ducts, intake filters, weatherproof containers |
| Upfront Cost | High – but enables mining in hostile conditions | Low – minimal cooling investment required |
| Energy Efficiency | High – with controlled liquid temp & overclocking potential | High – more power used for hashing than cooling |
| Maintenance Focus | Coolant circulation, filtration, pump operation | Fan maintenance, air intake cleaning |
| Heat Reuse Options | Difficult in extreme heat | Efficient – can dry wood or heat buildings |
| Noise & Density | Lower noise; supports dense installations | Fans can be loud; lower density unless hybrid is used |
| Real-World Examples | Marathon & Zero Two (Abu Dhabi, 250MW immersion) | BitCluster (Norilsk – free air cooling) Kryptovault (Norway – heat reuse) |
| Key Takeaway | Invest in advanced cooling to survive heat | Use simple air systems and repurpose heat smartly |
