| Manufacturer | Bitmain |
| Model | KS5 |
| Version | KS1-20 |
| Sub | Std |
| Algorithm | Cryptocurrency | kHeavyHash | KAS |
| Hashrate, TH/s(1-1) | 20 |
| Power on wall @25°C, Watt(1-1) | 3000 |
| Power efficiency on wall @25°C, J/T(1-1) | 150 |

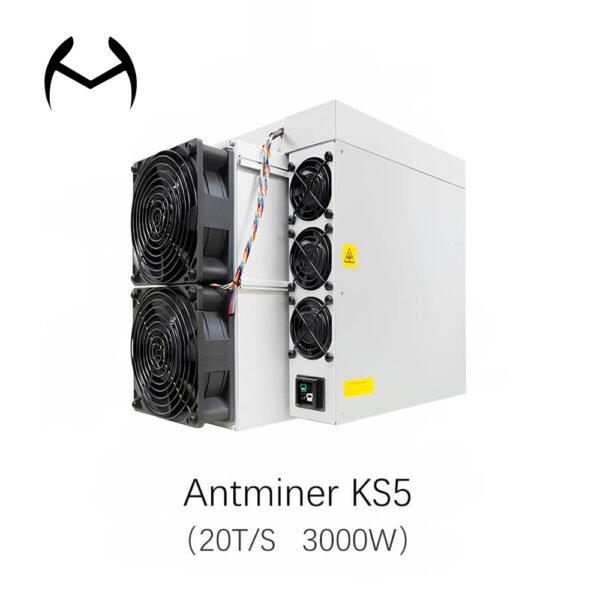

Bitmain released the latest ANTMINER KASPA mining rigs, the KS5 Pro and KS5, on February 25th. The Antminer KS5 (20Th) is a high-performance mining equipment optimized for KHeavyHash algorithm mining. With an amazing mining capacity of 20 terahashes per second (20Th/s) and a power consumption of 3000W, this miner provides exceptional efficiency and performance.
The Antminer KS5 (20Th) is designed to enhance the power of the KHeavyHash algorithm. Using this technique, you can mine cryptocurrency efficiently while also contributing to the network’s growth and security.
| Model | KS5 |
| Version | KS1-20 |
| Sub | Std |
| Algorithm | Cryptocurrency | kHeavyHash | KAS |
| Hashrate, TH/s(1-1) | 20 |
| Power on wall @25°C, Watt(1-1) | 3000 |
| Power efficiency on wall @25°C, J/T(1-1) | 150 |
| Detailed Characteristics | |
| Power Supply | |
| Power supply AC Input voltage range V(2-1) | 220~277V AC |
| Power supply AC Input Frequency Range, Hz | 47~63 |
| Power supply AC Input current, Amp(2-2) | 20 |
| Adapted AC Output power requirment W(2-3) | 4000 |
| Hardware Configuration | |
| Networking connection mode | RJ45 Ethernet 10/100M |
| Miner Size (Length*Width*Height, w/o package),mm | 430*195.5*290 |
| Miner Size (Length*Width*Height, with package),mm | 570*316*430 |
| Net weight, kg | 15.8 |
| Gross weight, kg | 17.7 |
| Noise,dBA@25°C(2-4) | 76 |
| Environment Requirements | |
| Operation temperature,°C | 0~40 |
| Storage temperature,°C | -20~70 |
| Operation humidity(non-condensing) , RH | 10~90% |
| Operation altitude, m(2-5) | ≤2000 |
NOTE:
1.If the user fails to use the product in accordance with the given instructions, specifications, and conditions provided, or change the function setting without Miner Source’s prior consent, Miner Source will not be liable for any damage arising therefrom.
(1-1) The Hashrate value, Power on wall, and Power efficiency on wall are all typical values.The actual Hashrate value fluctuates by ±3%, and the actual Power on wall and Power efficiency on wall fluctuate by ±5%.
(2-1) Caution: Wrong input voltage may cause server damaged.
(2-2) One 20A input wire.
(2-3) Caution: It is strongly recommended that the power on wall of the miner does not exceed this value.
(2-4) Max condition: Fan is under max RPM(rotation per minute).
(2-5) When the miner is used at an altitude from 900m to 2000m, the highest operating temperature decreases by 1°C for every increase of 300m.
Location:
Miner Source has two warehouses: Shenzhen and Hong Kong warehouse.
Shipping instructions：
Shipping details:
1 – Packaging details: carton packing per unit
2 – Worldwide delivery (Customer Request Acceptable): UPS, DHL, FedEx, EMS, TNT and Special Express Line (double-clear tax lines and door-to-door service for countries such as Thailand and Russia)
3 – Port: Shenzhen or Hong Kong
4 – Lead time: in 7 days after payment
Note: If you have any questions about the logistics information, please contact us immediately. We will track your shipment and get back to you as soon as possible.
We are Shenzhen China company specializing in providing Bitmain, Whatsminer, Avalon for global miners.
We will contact you within 3 hours, please pay attention to the email with the suffix “@minersource.shop”.
